Freo Z Ultra supports hot-water mop washing, but Narwal does not expose a manual temperature slider for the user to force a fixed water temperature. The exact-model product help says to enable Smart Temperature-Controlled Mopping System under Settings > Base Station, after which the robot/base automatically adjusts wash-water temperature according to dirt type and wash cycle. That means “the water is not always very hot” is not enough to diagnose a fault. First verify the feature is enabled and that you are observing an actual mop-wash event. If the base consistently produces no heated wash water when the function should be active, Narwal’s base-station troubleshooting explicitly includes Freo Z Ultra and says to unplug the base power cord to restart it; persistent failure goes to support. Do not open a powered wet base or try to bypass the temperature-control system.
Confirm the exact model and exact code, light pattern or symptom.
Run the lowest-risk physical or software check first.
Use each pass condition to decide what the result actually narrows down.
Does this match your problem?
- Freo Z Ultra mop-wash water seems cold and you want to know whether hot-water washing is enabled.
- The app does not offer a fixed temperature slider and you are unsure how the model controls wash-water temperature.
- Hot-water behavior worked before but now every mop wash seems unheated.
- You need to separate adaptive temperature behavior from a genuine base-station heating failure.
- The base has power and can wash mops, but heating appears absent after the setting and cycle are verified.
Most likely causes
Smart Temperature-Controlled Mopping System is turned off in the app.
The user is checking at the wrong stage; hot-water behavior is tied to mop washing, not every wet-system operation.
Adaptive temperature control chooses a different water temperature based on dirt type/wash cycle, so the user expects a fixed hotter result that the model does not promise.
The base-station control state needs a normal power restart.
App/robot state changed and the expected Base Station setting is not being applied or shown correctly.
A persistent heater/control fault remains after the feature is enabled and the official base restart path is completed.
What your test result means
| What you observe | What it narrows down | Next move |
|---|---|---|
| Smart Temperature-Controlled Mopping System is off | The model is not being asked to use adaptive hot-water washing. | Enable it in Settings > Base Station and test a real mop wash. |
| Water temperature varies between washes | Narwal says temperature is adjusted automatically by dirt type and wash cycle. | Do not diagnose failure from variation alone; verify whether heating is consistently absent. |
| Mop washing works but heating is consistently absent | Wet-system flow exists, narrowing the issue toward temperature control. | Power-restart the base as Narwal instructs and retest one wash. |
| Base station has broader power/display problems | A hot-water diagnosis is premature. | Restore normal base power first using the base-station power checks. |
| Heating is still absent after enabled setting + clean restart | The published owner steps are exhausted. | Record the setting and wash behavior and contact Narwal; do not open the wet base. |
Do not factory-reset by default. Use the exact model’s reboot/network-reset procedure only when the manufacturer path calls for it.
Run these checks in order
Confirm the model and the expected control behavior
Verify the device is Freo Z Ultra and open its Base Station settings. Narwal says hot-water mop washing on this model is managed by the Smart Temperature-Controlled Mopping System. There is no user instruction to pick an exact fixed Celsius value for every wash; the station adjusts temperature based on dirt type and the mop-wash cycle. This distinction keeps adaptive behavior from being misread as a broken heater.

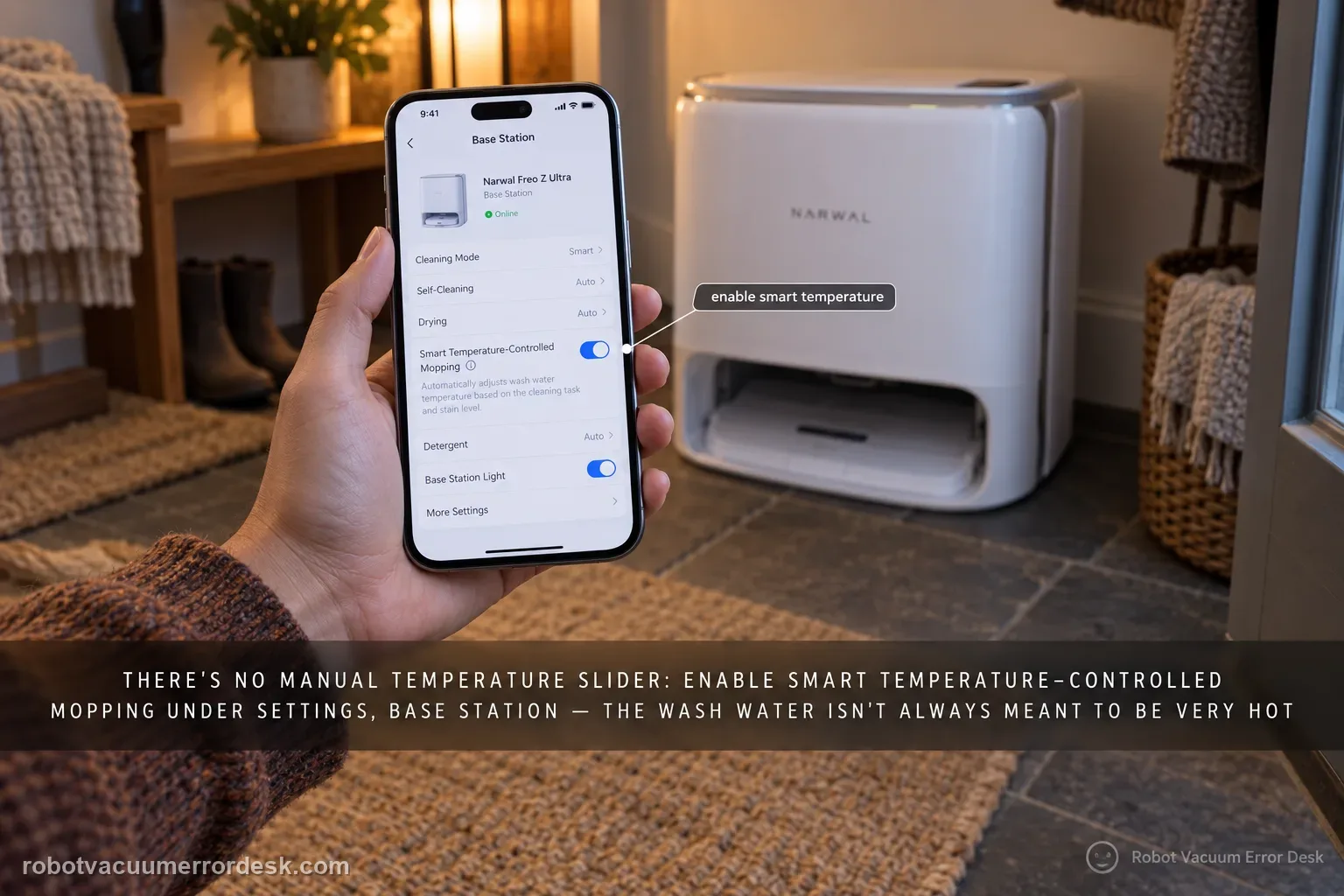

Enable Smart Temperature-Controlled Mopping System
In the Narwal App device page, go to Settings > Base Station > Smart Temperature-Controlled Mopping System and confirm the switch is on. Take a screenshot before changing it if the issue is intermittent. If the setting was off, enable it and leave other cleaning parameters unchanged for the next test. Changing multiple wet-system options at once makes it difficult to tell whether the heating control was the actual cause.
Observe an actual mop-washing event
Run a mopping task that returns to the base for mop washing or manually start the supported Washing & Drying/mop wash operation. Do not judge the feature from clean-water tank temperature, mop moisture during floor cleaning or a drainage event. Narwal’s description is specifically about water used to wash the mops at the base. Keep hands away from hot or moving wet-system parts and use app/base status rather than touching internal water lines.
Look for consistent absence, not normal temperature variation
Because the station intelligently changes water temperature based on dirt type and wash cycle, one milder wash is not proof of failure. Compare at least two normal wash events without changing unrelated settings and record whether there is any sign that heated washing occurs. Avoid trying to force hotter water with third-party detergent or manual hot-water additions; Narwal warns against unsupported detergents and the base controls its own water system.
Power-restart the base station once
If the feature is enabled and heating appears consistently absent while mop washing otherwise works, follow Narwal’s specific hot-wash troubleshooting: unplug the base-station power cord, let the station fully power down, then reconnect it and allow normal startup. Do not open the base or cycle power repeatedly. After startup, verify the setting is still enabled before running the next test.
Retest one controlled mop-wash cycle
Run one additional mop-wash cycle under the same app configuration. Note whether water delivery, washing motion and other base functions are normal even if heating is not. This observation helps support distinguish a narrow heating-control problem from a broader water-path or power issue. If the base cannot pump water at all, switch to the clean-water troubleshooting path rather than continuing to diagnose only temperature.
Escalate without opening the wet base
Narwal says persistent no-hot-wash-water behavior on supported models including Freo Z Ultra should go to support after the base restart. Capture the app setting, video of the wash cycle/indicators and whether ordinary mop washing still works. Do not remove panels, probe heater wiring or bypass temperature controls. A powered base combines water and electrical components, so the owner-level boundary is deliberately narrow.
Contact Narwal if the Smart Temperature-Controlled Mopping System is enabled and a real Freo Z Ultra mop-wash cycle remains consistently unheated after one full base-station power restart. Send a screenshot of the enabled setting, video of the wash cycle, whether clean-water delivery and mop washing still operate normally, and when the behavior changed. Do not add external hot water, third-party chemicals or open the powered wet base to test the heater yourself.
What to collect before contacting support
Give support a reproducible case instead of “it doesn’t work.” That reduces repeated basic troubleshooting and preserves the clues from your tests.
- Exact model name and the error code / voice prompt exactly as shown
- A photo or screenshot of the app error and the time it occurred
- A short list of the checks already completed and what happened after each one
- Robot serial number (SN) and a short video showing the wet-system behavior
Manufacturer evidence
Narwal Base Station Troubleshooting
Narwal’s base-station troubleshooting explicitly names Freo Z Ultra among hot-water-mopping models and gives a power-restart-then-support path for no heated wash water. The exact product-help page documents the Smart Temperature-Controlled Mopping System setting and automatic temperature selection.
Additional official source: Narwal Freo Z Ultra Product Help ↗Additional official source: Narwal Error Code Index ↗Last editorial review: September 5, 2026Regional note: manufacturer help centers, model suffixes, mains-power requirements and warranty procedures can differ by country. If the source redirects to a local support site, confirm that the model/hardware scope still matches before following a region-sensitive step.
Official model support means the manufacturer page explicitly covers this model. Official series support means the manufacturer explicitly groups the model with a documented series path. Official manual means the diagnostic comes from the exact-model owner manual. Manufacturer-general means the source is an official brand-wide troubleshooting path and the page avoids presenting it as model-exclusive.
FAQ
Where is the Freo Z Ultra hot-water mop-wash setting?
Narwal places it in the device page under Settings > Base Station > Smart Temperature-Controlled Mopping System. Turn that switch on before testing. The model then adjusts wash-water temperature automatically; Narwal does not describe a user slider for forcing one fixed temperature on every wash. Take a screenshot of the setting if the problem is intermittent.
Why is Freo Z Ultra mop-wash water not always equally hot?
Narwal says the base intelligently adjusts wash-water temperature according to the type of dirt in the wastewater and the mop-washing cycle. Variation can therefore be normal. Diagnose a fault only when heating appears consistently absent across genuine mop-wash events with the feature enabled, then use the official one-time base-station power restart before escalating.
Can I pour hot water into the Narwal clean-water tank to test it?
Do not use external hot water as a diagnostic shortcut. The Freo Z Ultra base manages its own wet-system temperature, and Narwal warns owners to use the supported water/cleaning-solution setup rather than improvising chemicals or service methods. Verify the app setting and real mop-wash behavior, then use the manufacturer’s base power-restart step for persistent no-heat symptoms.
What if mop washing works but the water never heats?
That is a useful discriminator because basic water delivery and washing motion are still functioning. Confirm Smart Temperature-Controlled Mopping System is enabled, observe a genuine wash cycle, then unplug/restart the base once as Narwal directs. If ordinary washing remains normal but heated washing is consistently absent afterward, document the cycle and contact Narwal rather than opening the base.
When should hot-water failure be treated as a service case?
Treat it as a service case when Freo Z Ultra has the temperature-control feature enabled, the base has normal power, mop washing and water delivery work, and heated washing remains consistently absent after the official base-station restart. Send the setting screenshot and cycle video. If water delivery itself is failing, use the clean-water path first because that is a broader wet-system fault.
